Product Details
Descriptions

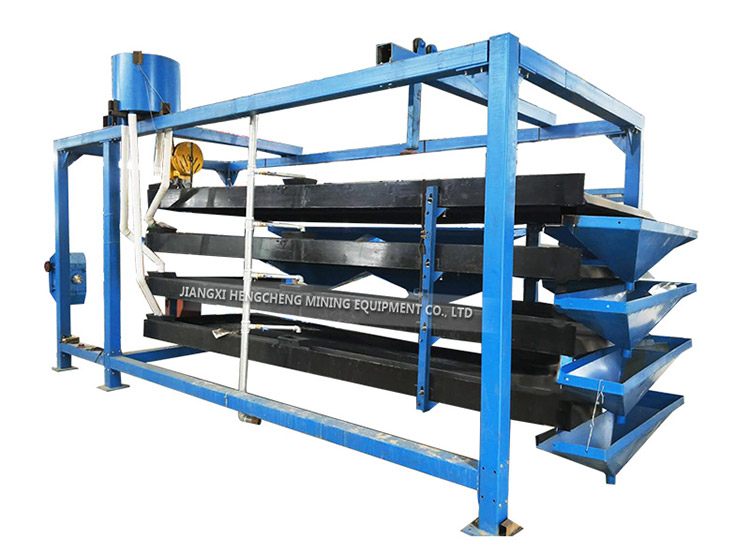

Shaking table which is also called table concentrator, it's effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The range of effective separating particle size of shaking table is 2 to 0.022 mm.
Advantages and Characteristics
★ Ingenious structure of inertial gearing, self balanced vertical force component. No vertical jump because no vertical vibrating force. It can be installed on the building floor, or on the bracket.
★ Lift type, minimal consumption of friction, reduce vibration and energy-saving, non-required bulky base, quick and flexible installation.
★ It adopts fiberglass deck with wear-resistant layer, wear-resistant, waterproof, anti-dry, anticorruption, non-deformed, less maintenance, long service life.
★ The deck installed in an uniform frame layer by layer, easy to install and unload, increase processing capacity per unit area. Replace different weight blocks can change the stroke of shaking table.
★ It adopts variable frequency governor, easily change frequency of stroke to adopt different material with different particle size and feature.
Product Parameters
| Main Technical Parameters | |||||||
|---|---|---|---|---|---|---|---|
| 型号 Model | 3LYG | 4LYG | |||||
| 床面类型 Deck type | 粗砂床面Coarse ore Deck | 细沙床面 Fine ore sand | 矿泥床面Slime Deck | 粗砂床面Coarse ore Deck | 细沙床面 Fine ore sand | 矿泥床面Slime Deck | |
| 床面选矿面积Beneficiation area (m2) | 7.6 X 3 | 7.6 X 3 | 7.6 X 3 | 7.6 X 4 | 7.6 X 4 | 7.6 X 4 | |
| 床面尺寸 Deck Size | 长度 Length (mm) | 4500 | 4500 | 4500 | 4500 | 4500 | 4500 |
| 传动端客户 Transmission end width (mm) | 1850 | 1850 | 1850 | 1850 | 1850 | 1850 | |
| 精矿端宽度 Concentrate end width (mm) | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 | |
| 最大给料粒度 Maximum feeding size (mm) | 2 | 0.5 | 0.074 | 2 | 0.5 | 0.074 | |
| 处理能力 Capacity (t/h) | 4-5 | 2-3 | 1.5-2.5 | 5-6.5 | 3-5 | 2-3.5 | |
| 给矿浓度 Feeding density (%) | 20-30 | 18-25 | 15-20 | 20-30 | 18-25 | 15-20 | |
| 冲程 Stroke (mm) | 8、10、12、15、18、20、22 | ||||||
| 冲次 Frequency of stroke (r/min) | 270—360（变频调速 variable-frequence） | ||||||
| 耗水量 Water consumption (t/h) | 0.7-1 | 0.4-0.7 | 0.4-0.7 | 0.7-1 | 0.4-0.7 | 0.4-0.7 | |
| 刻槽断面形状 Groove shape of deck | 三种形状可选：矩形，锯齿状，三角形 Available Rectangular, Saw-tooth, Triangle | ||||||
| 电机功率 Power (Kw) | 1.5Kw | 外形尺寸Dimensions (mm) | 6330×2450×2660 | ||||
