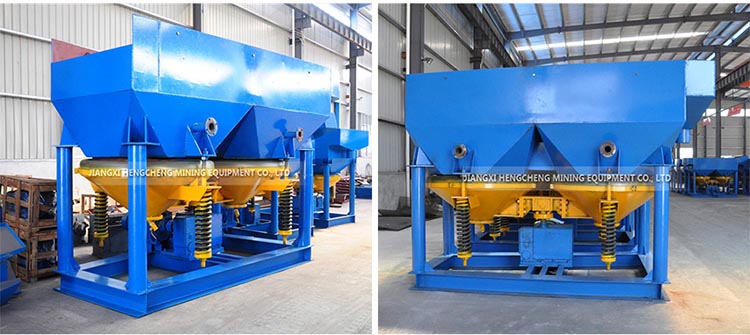

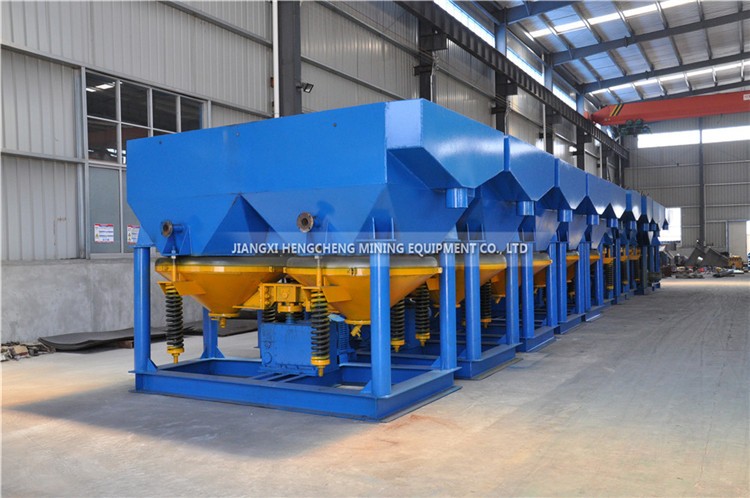

Jigging Machine

Main Features of Jig Machine

1. High capacity. Stroke and frequency are adjustable.

2. High concentration ratio and high recovery;

3. Fabricated with highest quality material;

4. Easy to install, operate and maintain;

5. The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling;

6. Saving water 30-40% than ordinary jig;

7. The pulsation speed very easy adjusted by regulator;

8. Suitable for roughing and desliming.

Working Principle of Jig Machine

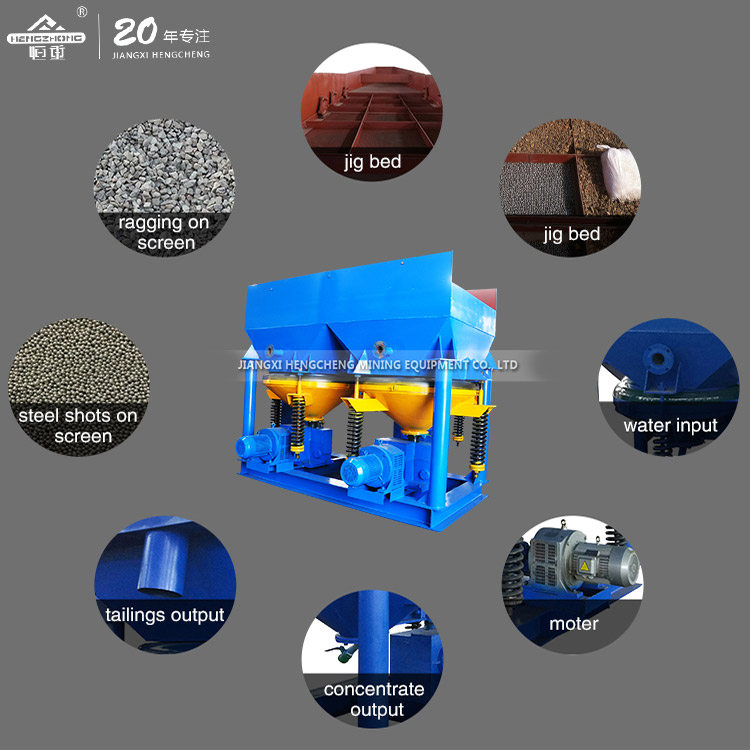

Jig machines need water to work, and it loosens materials in vertical alternative water-flows, and it forms different layers of materials of different densities and discharges both layers from up and down discharging ports separately. The basic composition of jigger is jigging chambers, also called jigging boxes, and there are screens in each chamber.

Water and raw ore will be fed from one end of the jigger screen, the ore granules will move in the vertical alternative water-flows. Layers will be formed because of density difference of materials. The minerals with small density will be in the up layer and will flow together with the pulp flow while material with bigger density will be in the down layer and will discharged from the down discharging port as jigging concentrate.

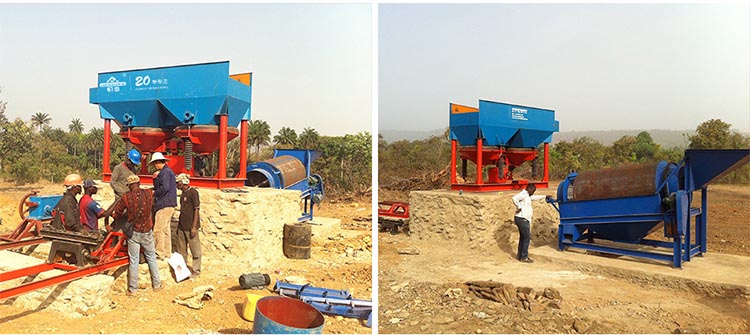

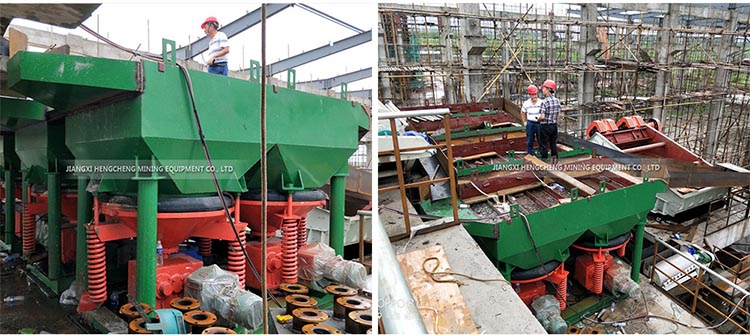

Our Jigging Machine In Clients' Mine Sites

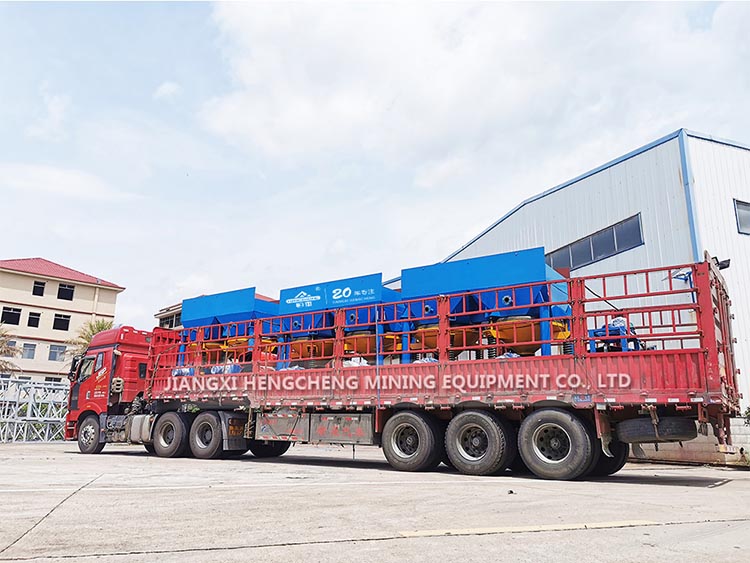

Packing and Delivery

1.All the goods will be delivered in 15-30 working days after receiving payment.

2.The jig machine will be packed in export container.

3.Motors and small parts will be packed in new strong wooden cases that suitable for long distance ocean transportation.

4.We promise that your goods will be shipped to destination timely and safely.

For more

Our main products include Feeding Equipment, Crushing Equipment, Trommel Screen, Vibrating Screen, Ball Mill, Wet Gold Grinding Pan Mill, Spiral Classifier, Shaking Table, Mineral Jigger Machine, Spiral Chute, Centrifugal Gold Concentrator, Vibrating Sluice Box, Carpet Sluice Box, Gravity Separator, Flotation Separator, Magnetic Separator, Mixing Tank, Pump, Hydro cyclone, Sand Making& Washing Equipment, Laboratory Equipment.

 We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.

1) What's the capacity per hour would you want ?

2) What 's the raw materials do you want to process?
