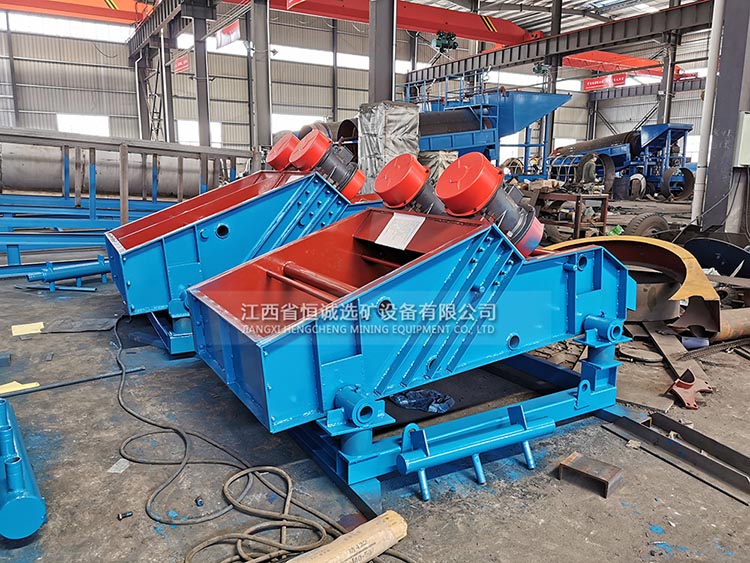

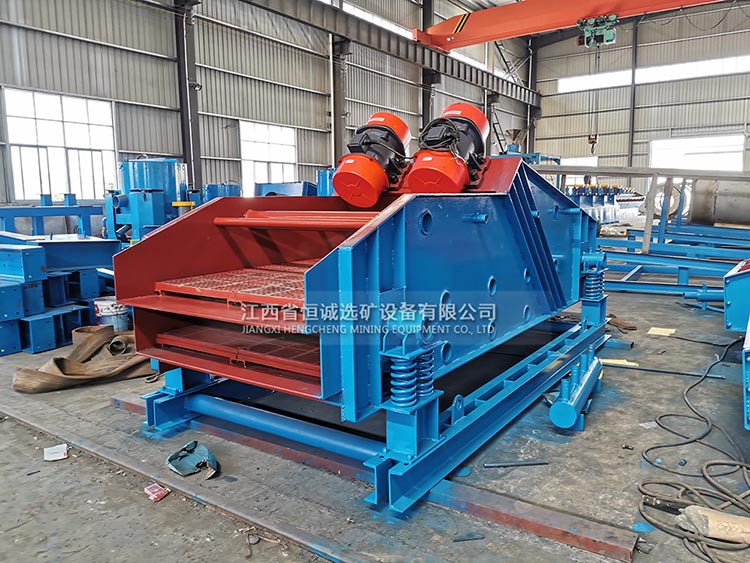

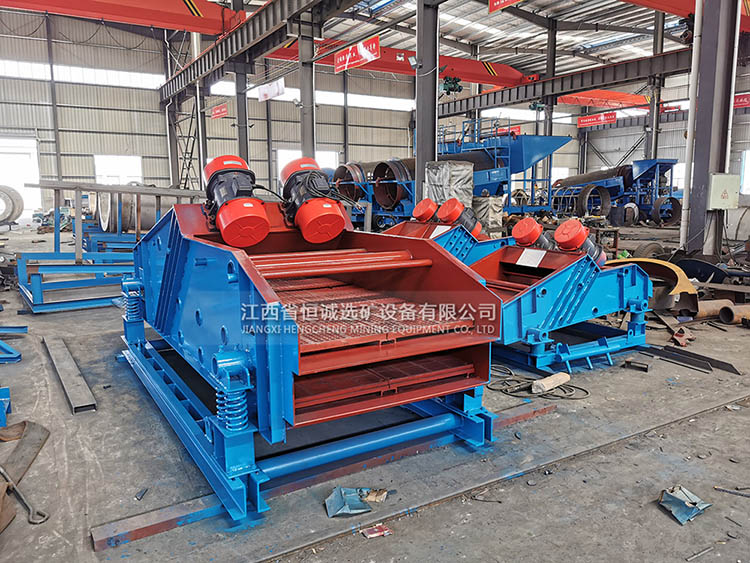

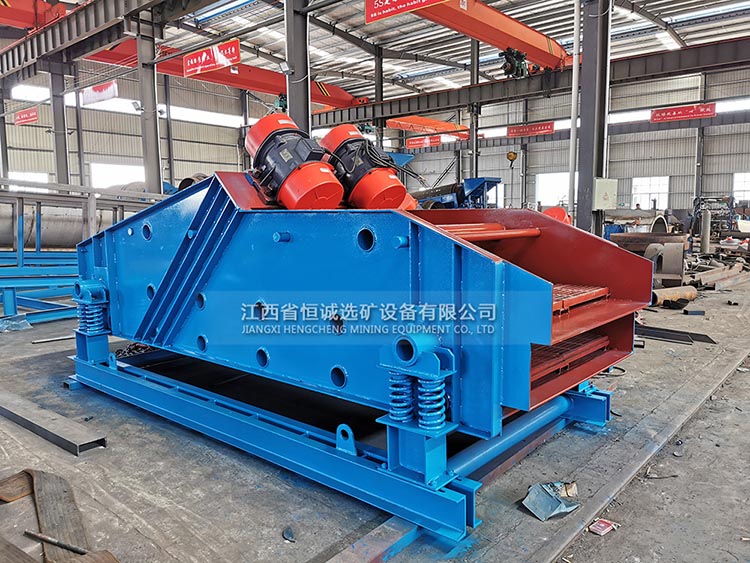

ZZS Linear Vibrating screen

Description

ZZS Linear vibrating screen uses excellent vibrating motor as power source, that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration.

Working Principle

ZZS Linear vibrating screen uses double vibrating motors to drive, when two motors rotate synchronously and reversely, exciting forces generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction, so its movement track is linear. There is an angle of inclination between the two motor axes relative to the screen deck. Under the influence of the resultant force of exciting force and materials itself weight, materials are thrown up to make leapfrog and linear movement forward on the screen deck in order to screen and grade the materiel .Applied in flowing line to achieve automatic operation.

Main Features

1. Choose polyurethane screen or steel screen as its screen.

2. Customized sizes.

3. Simple structure, easily installation and lower invest.

4. Bending a whole steel plate as its main body, no welding and no leaking.

5. Final sand water content down to 15%, convenient in packing and delivery.
