Product Details
Description:

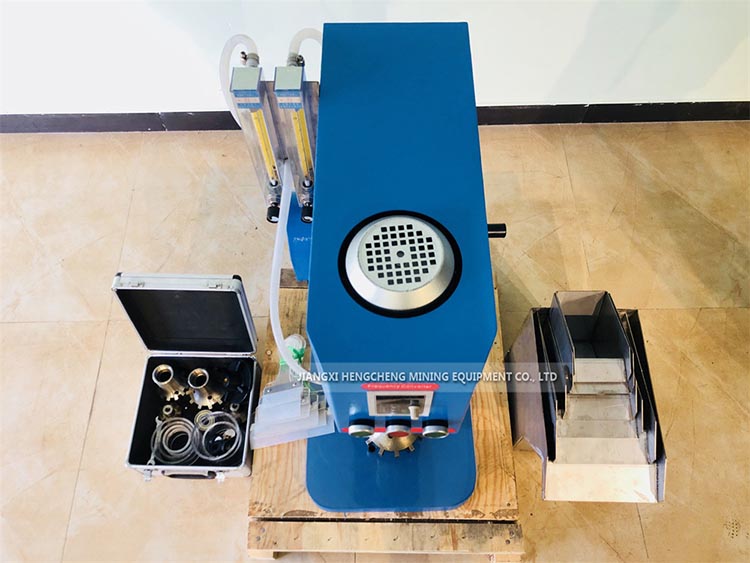

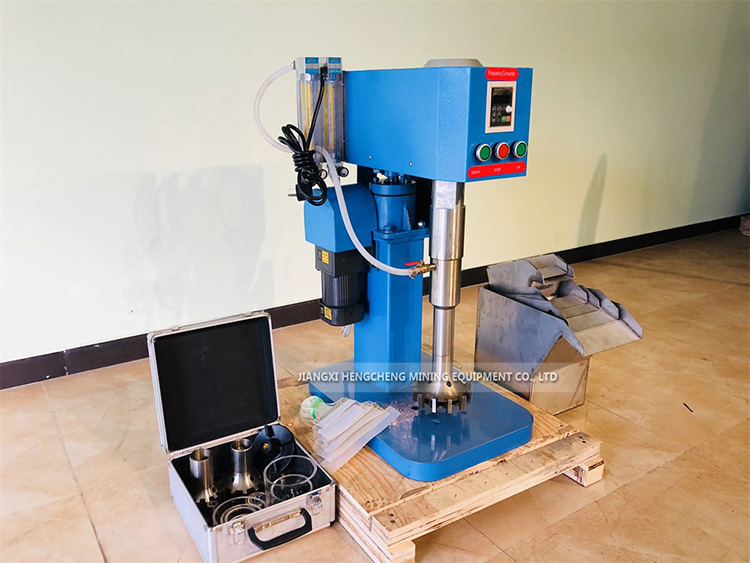

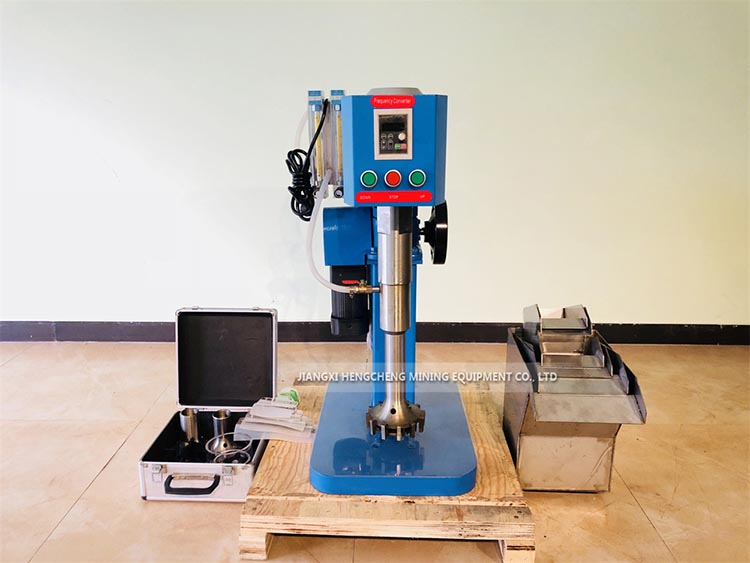

XFD-12 Multple cells Lab flotation cell has a suspended type mechanism and include a totally enclosed anti-friction spindle bearing, stainless steel shaft, stainless steel standpipe with air control valve, three changeable stainless diffuser type hoods, and three removable stainless open type impellers of different sizes for use in various size stainless steel or acrylic tank.
Advantages
1. Adjustable impeller speed through VFD
2. Adjustable aeration control
3. Cells are removable and easily cleaned.
4. Stainless steel shaft.
5. Stainless steel impeller and difuser which are corrosion and abrasion resistant.
Flotation tank

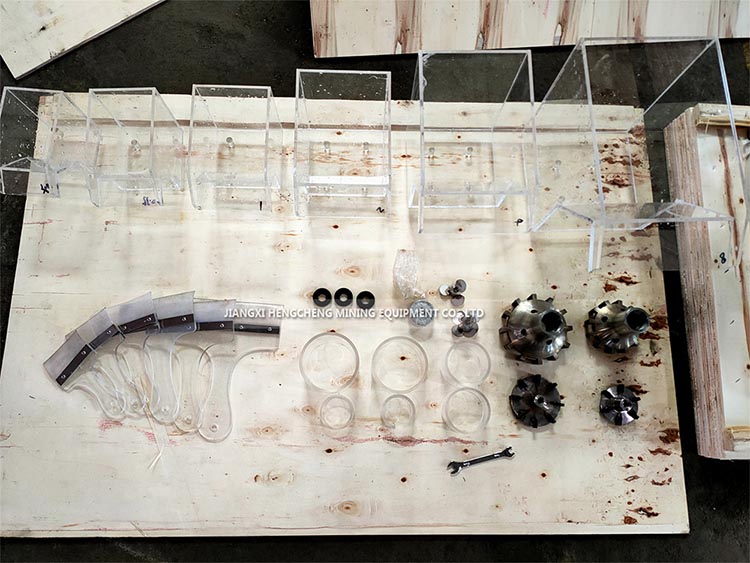

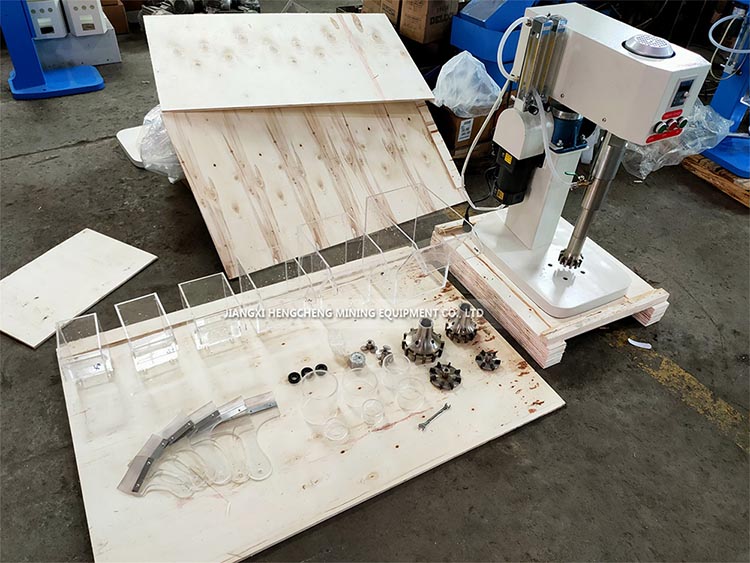

XFD-12 Lab Flotation Machine/ Flotation Cell is supplied with 6 sizes of flotation tank(stainless steel or acrylic)
which enables it can do rougher, cleaning and scavenging tests.
Product Parameters
| Item | I | II | III | Unit | |
|---|---|---|---|---|---|
| Impeller diameter | Φ54 | Φ73 | Φ95 | mm | |
| Flotation cell volume | 500、750 | 1000、2000 | 4000、8000 | ml | |
| Circulating cylinder | Φ78×64 | Φ60×30 | Φ100×102 | mm | |
| Φ78×42 | Φ60×16 | Φ100×50 | |||
| Impeller rotation speed | 700-2000 | r/min | |||
| Motor | Model | JW6324 | |||
| Power | 250 | w | |||
| Voltage | 220 | v | |||
| Rotation speed | 1400 | r/min | |||
| Weight | 58 | kg | |||
| Dimension | 560×460×860 | mm | |||
