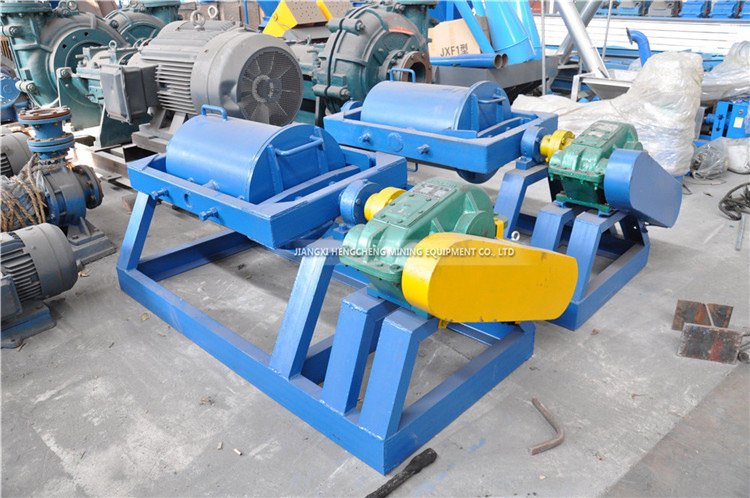

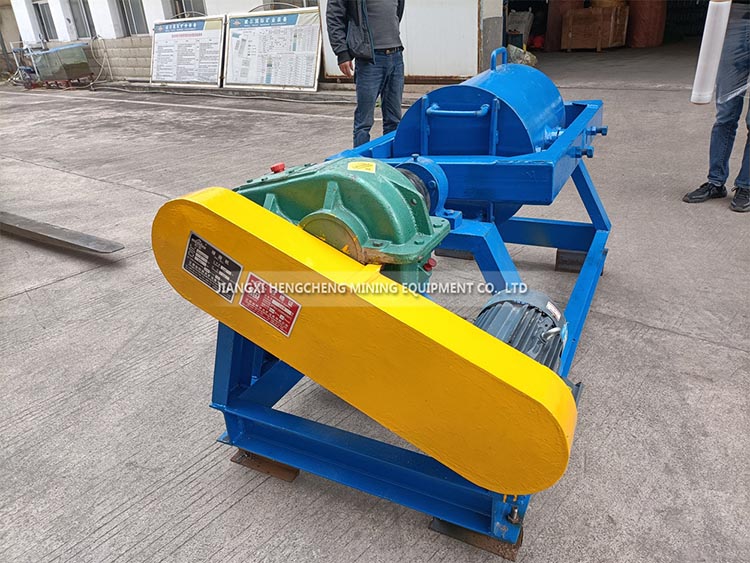

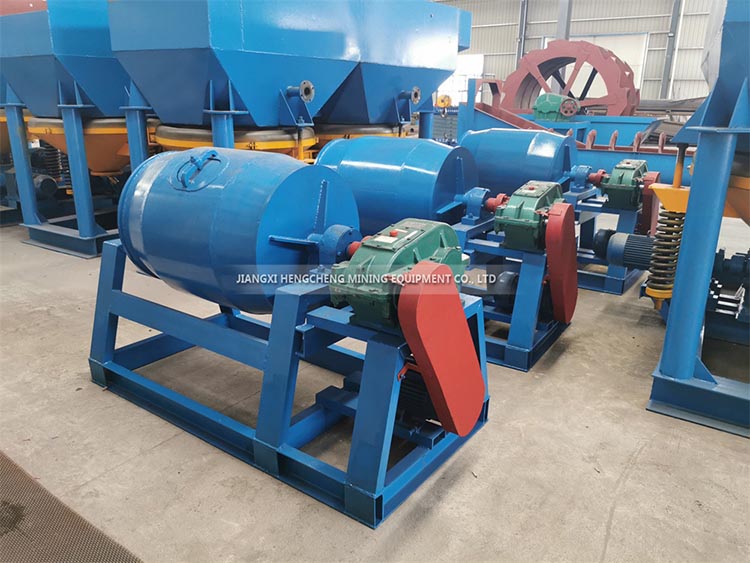

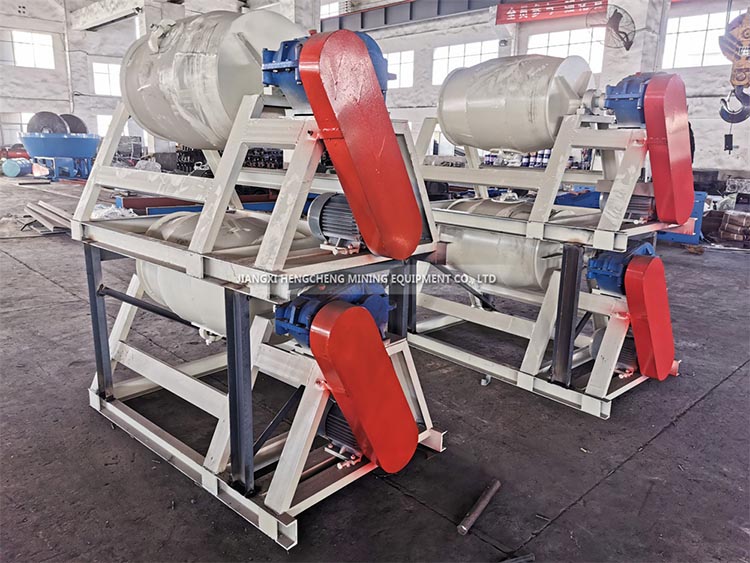

XMQ Cylindrical Ball Mill
browse：time
Cylindrical ball mill is a fully enclosed dry and wet intermittent grinding equipment for semi-industrial laboratories such as building materials, refractory materials, metallurgy, coal, light industry, chemical industry, agriculture, etc.
Product Details
Small ball mill is totally enclosed intermittent grinding equipment which is capable of both dry grinding and wet grinding. During the study of ores’ separability, this machine is not only used as a ball mill, but also meet requirement of getting the desired particle size of grinded materials according to beneficiation method, steel rods can be the grinding media to be used for rod mill.
It’s a kind of suitable grinding equipment used during geological experiment work before heavy placer minerals are separated.
For research purposes, it is a better transitional grinding equipment between continuous grinding and intermittent grinding. It is also a suitable grinding equipment before artificial heavy sand separation of minerals in geological experiment work.
Product Parameters
| Model | Drum size | Feeding quantity（kg） | Drum speed（r/min） | voltage(v) | Power（kw） | Ball load（kg） | Ball diameter（mm） | ||
|---|---|---|---|---|---|---|---|---|---|
| diameter（mm） | Length(mm) | Volume(m3) | |||||||
| XMQ420x600 | 420 | 600 | 0.07 | 50-100 | 25-30 | 380 | 3 | 25-50 | 20-50 |
| XMQ600x800 | 600 | 800 | 0.2 | 100-150 | 20-25 | 5.5 | 50-80 | 20-80 | |
| XMQ800x1000 | 800 | 1000 | 0.5 | 100-200 | 15-20 | 7.5 | 80-100 | 20-100 | |
