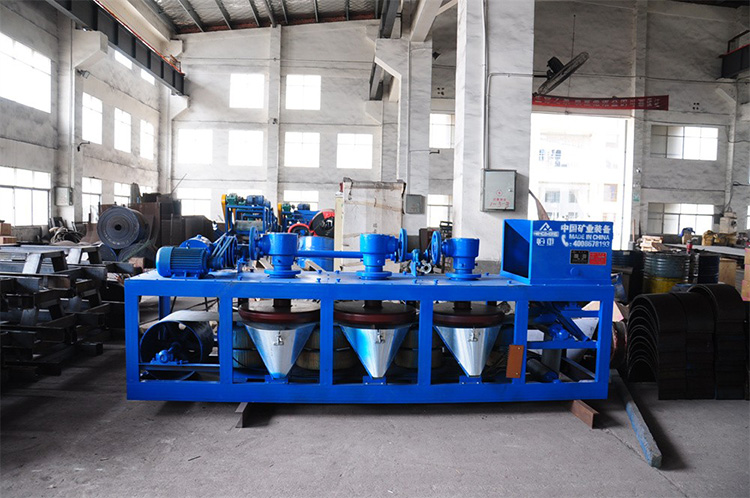

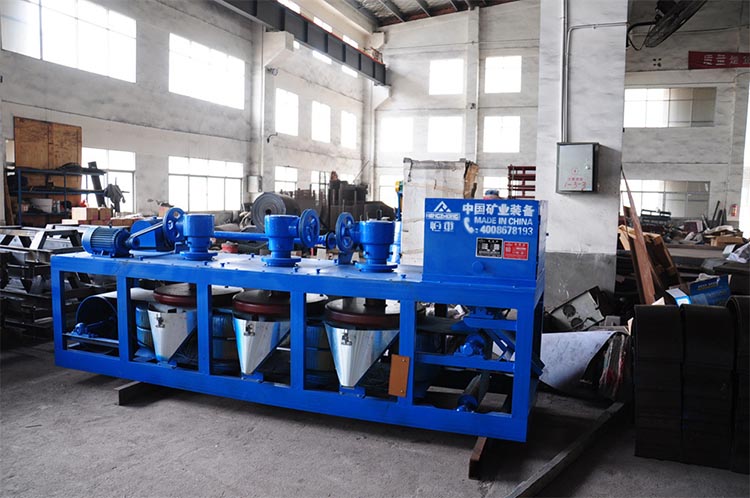

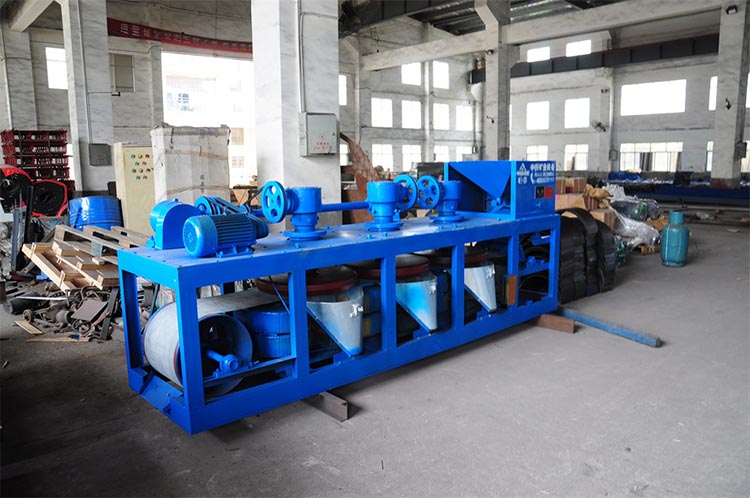

Three Disk Magnetic Separator

Main Features

It has a reasonable structure, small footprint, simple operation and maintenance, it could separate variety of ferromagnetic minerals, weakly magnetic, non-magnetic and so on in the same time. It’s best choice for water-shortage mines.

1. Small capacity (80-800kg/h depend on the disk diameter)

2. With 3 pcs disk

3. Each disk is with Adjustable magnetic intensity from 1000-20000 Guass, can adjust according to minerals magetic intensity.

4. 4 different minerals can be obtained at the same time by useing  this magnetic divice.

5. High intensity with dry processing

6. Low power consuption.

7. The moisture of feeding material shall be under 1%.

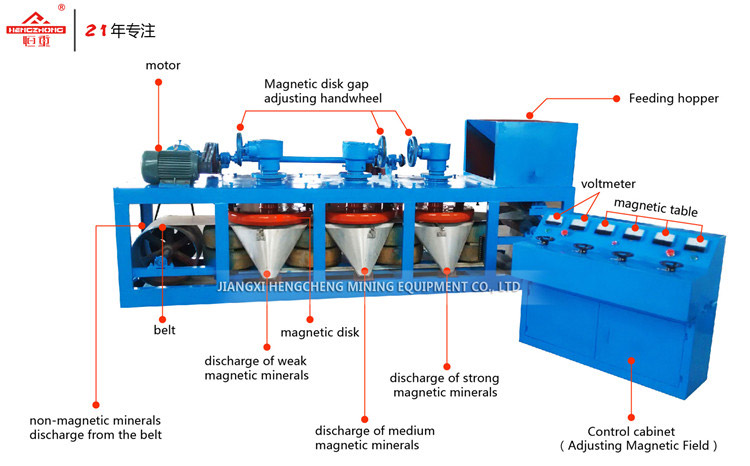

Working Principle

This machine is widely used in ilmenite, monazite, tungsten, tin, tantalum, iron ore and other minerals with magnetic and non-magnetic dry sorting. Three-disc electromagnetic separator suits for a variety of strong magnetic minerals mixed ore separation, according to the difference of magnetic minerals, could achieve efficient separation. It can form different magnetic intensity by adjusting the excitation current levels, can also adjust each disk level and sensing distance between dressing grain, to get different magnetic induction intensity, reach a one-time separation for mixed type minerals.

Packing and Delivery

1. All the goods will be delivered in 15-30 working days after receiving payment.

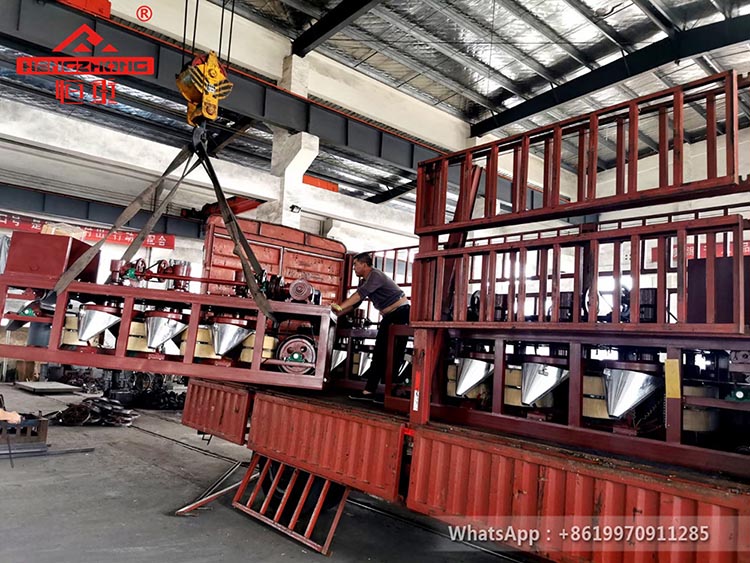

2. The machine will be packed in export container.

3. Motors and small parts will be packed in new strong wooden cases that suitable for long distance ocean transportation.

4. We promise that your goods will be shipped to destination timely and safely.
