Vibrating screen
browse：time
Vibrating screen (round vibrating screen) is a new type of vibrating screen with multi-layers and high efficiency. Cylindrical vibrating screen uses cylindrical eccentric shaft exciter and partial block to adjust amplitude, material sieve has long running line and many sieving specifications.
Product Details
Description

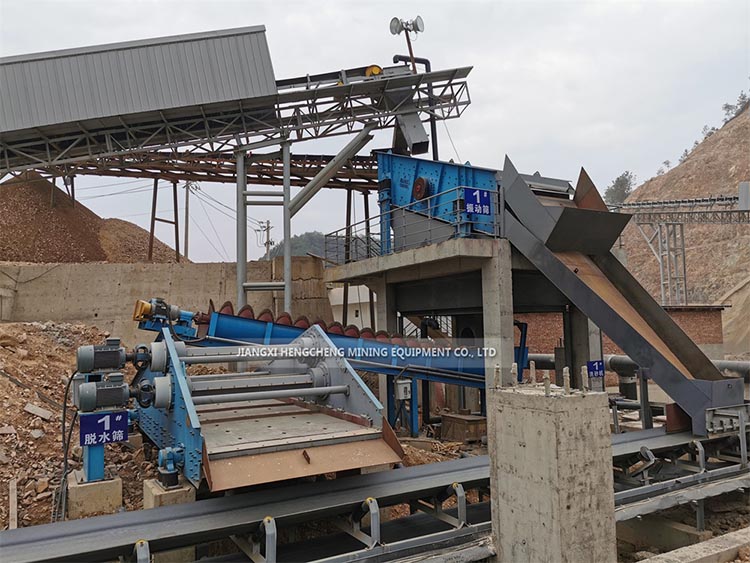

Circular vibrating screen has the characteristics of reliable structure, strong exciting force, high sieving efficiency, low vibration noise, durability, convenient maintenance and safe use. Cylindrical vibrating screen is widely used in product classification of mining, building materials, transportation, energy and chemical industries.
Working Principle
The motor makes the exciter swing rotate speedily through the tire coupling. The continuous forced circular motions of sieve box were achieved through the powerful centrifugal force. Under the influence of sieve box, the materiel is tossed forward successively on the mesh. they were classified as thrown up, and the particles smaller than the mesh size were sieved out when they are falling, so that the classification of material could be achieved.
Main Features
1. Simple and reasonable structure.
2. Full welding connection, more durable.
3. Block-eccentric, more powerful.
4. Low power consumption.
5. Large capacity, small amplitude, high frequency, large angle.
6. Standard accessories, easy maintenance.
Product Parameters

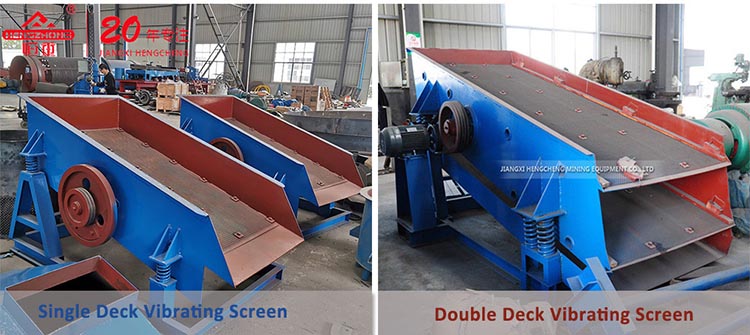

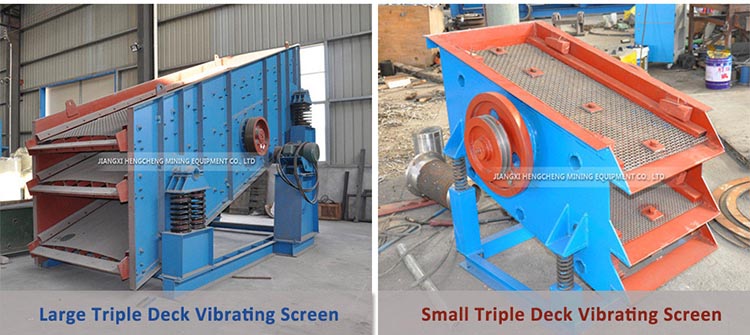

| Model | Layer | MaxFeed size (mm) | Sievesize (mm) | capacity (t/h) | Frequency (shift/min) | Angle(°) | Power(kw) | Dimension (L*W*H) | Weight (T) |
|---|---|---|---|---|---|---|---|---|---|
| SZZ600×1200 | 1 | 40 | 1-25 | 3-20 | 1000 | 15-25 | 2.2 | 1370×890×330 | 0.34 |
| SZZ2600×1200 | 2 | 40 | 1-25 | 3-20 | 1000 | 15-25 | 2.2 | 1370×890×430 | 0.36 |
| SZZ900×1800 | 1 | 40 | 1-25 | 5-25 | 1000 | 15-25 | 2.2 | 2150×1358×575 | 0.55 |
| SZZ2900×1800 | 2 | 40 | 1-25 | 5-30 | 1000 | 15-25 | 3 | 2489×1358×770 | 0.62 |
| SZZ1250×2500 | 1 | 100 | 1-40 | 10-100 | 850 | 15-20 | 5.5 | 2762×1714×680 | 1.1 |
| SZZ21250×2500 | 2 | 150 | 1-40 | 10-120 | 850 | 15-20 | 5.5 | 2702×1714×740 | 1.3 |
| SZZ1500×3000 | 1 | 150 | 1-40 | 15-150 | 800 | 15-25 | 7.5 | 3320×1449×787 | 2.1 |
| SZZ21500×6000 | 2 | 150 | 1-40 | 20-220 | 700 | 15-25 | 11 | 6500x1900x1000 | 3.8 |
