Melting Furnace
browse：time
Our company could supply different kinds of melting furnace for varied metals. Power use imported IGBT power devices which is more integrated and smaller size, efficient power output could reach above 90%. More energy saving, 40% lower than traditional model.
Product Details
High Frequency, Medium Frequency Induction Melting Furnace For Gold, Silver, Copper And Steels
■ Adopted with MOSFET, IGBT power device and variable frequency control, Hengcheng high frequency induction heaters enjoy high efficiency, energy saving and larger output power.
■ With constant current and constant power control function, the products can realize extremely optimized metal heating process,thus achieving high efficient, quick heating and greatly give play to the superiority of products.
■ Saving double electricity more than traditional high frequency induction heating device under the same conditions.
■ With 100% load design, it can work 24 hours constantly without a break. It can be equipped with infrared temperature measuring device to realize automatic control, promote heating quality and simplify artificial operation.
■ With three functional setting including heating-heat retaining-cooling, it can achieve required heating and incubation process to make itself suitable for repetitive and mass heating work.
■ The machine can display various states such as over current, over voltage, lacking of water, lacking of phase and light loading, thus providing higher reliability and durability.

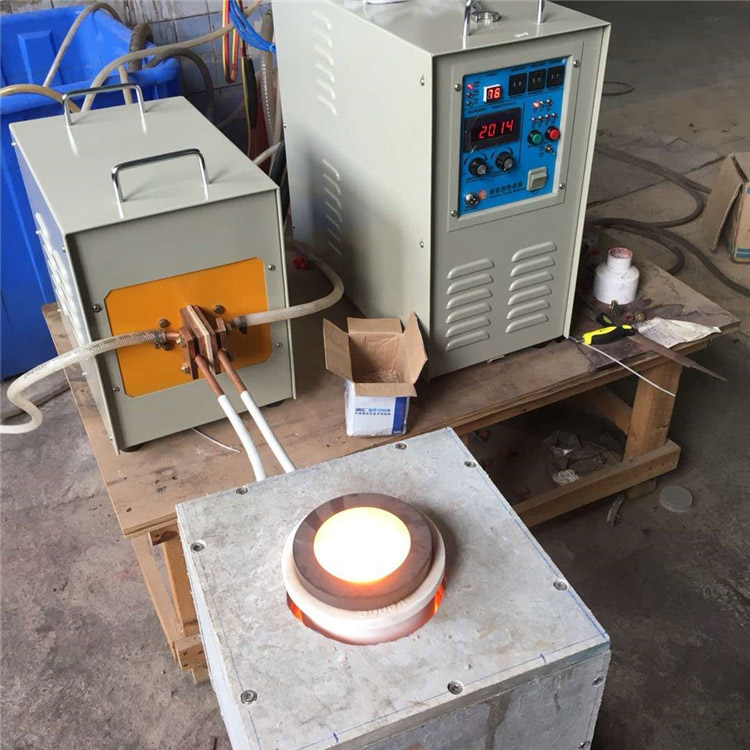

High Frequency Gold Melting Furnace :

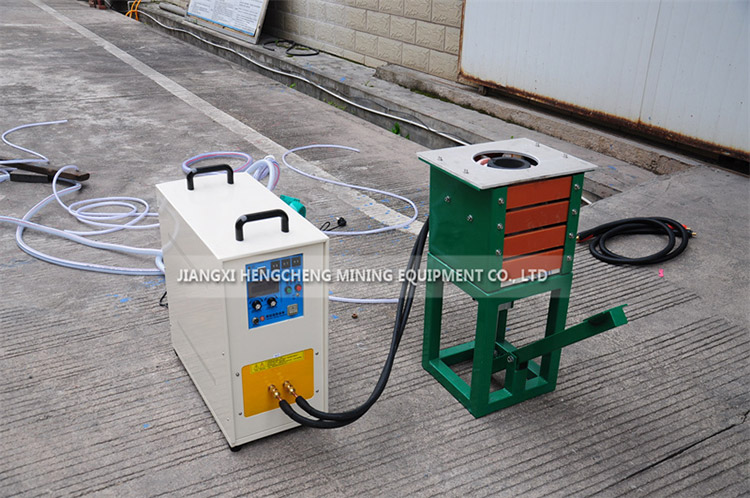

Medium Frequency Gold Melting Furnace :
Product Parameters
| Model | Power | Maximum melting capacity Kg/time | ||
|---|---|---|---|---|
| Iron, steel | Gold,silver,copper | Aluminum | ||
| GP-15 High frequency metliting furnace | 15KW | 0.5 | 2 | 0.5 |
| GP-25 High frequency metliting furnace | 25KW | 1 | 3-4 | 1 |
| ZP-15 Medium frequency metliting furnace | 15KW | 4 | 5-10 | 3 |
| ZP-25 Medium frequency metliting furnace | 25KW | 8 | 20 | 6 |
| ZP-35 Medium frequency metliting furnace | 35KW | 12 | 40 | 12 |
| ZP-45 Medium frequency metliting furnace | 45KW | 18 | 70 | 21 |
| ZP-70 Medium frequency metliting furnace | 70KW | 28 | 100 | 30 |
| ZP-90 Medium frequency metliting furnace | 90KW | 45 | 120 | 40 |
| ZP-110 Medium frequency metliting furnace | 110KW | 60 | 150 | 50 |
| ZP-160 Medium frequency metliting furnace | 160KW | 100 | 250 | 75 |
