Hammer crusher
browse：time
Hammer crusher is suitable for mid-hard and light erosive materials, of which pressure resistance strength is no more than 100Mpa and humidity lower than 15%, such as coal, salt, chalk, gypsum, blocks, limestone, etc.
Product Details
Description
The PC Hammer crusher is suitable for both dry and wet crushing of brittle, medium-hard materials for the mining, coal, metallurgic, construction material, road building, and chemical industries. the maximum compressive resistance of the crushed materials can be up 150Mpa.
Working Principle

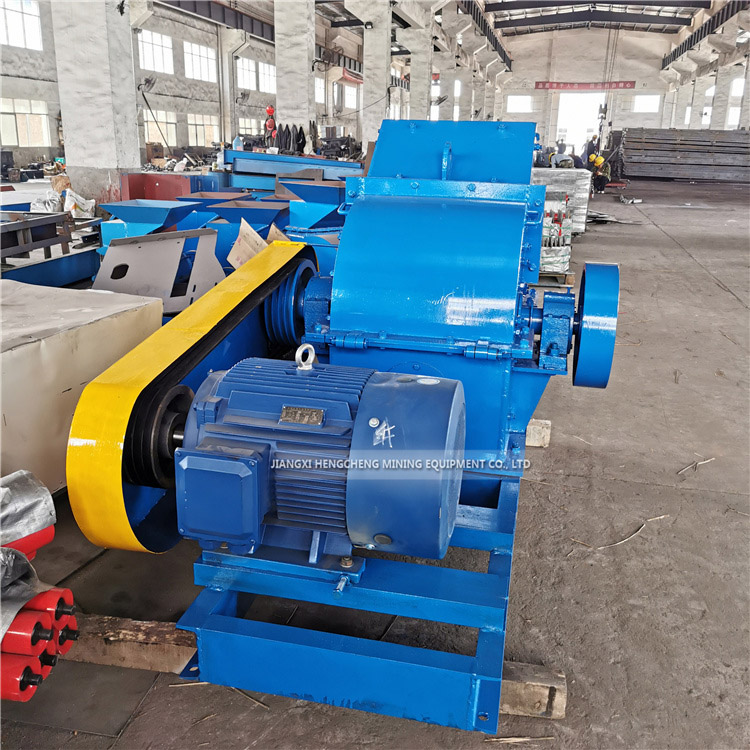

The motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products.
Main Features
1. High ratio of crushing.
2. Homogeneous final grain size.
3. Simple structure.
4. Reliable working condition.
5. Easy maintenance.
6. Low cost.
Product Parameters
| Model | Speed (mm) | Feeding opening(mm) | Max feeding size (mm) | Discharging size(mm) | Capacity (t/h) | Motor Power (kw) | Weight(t) | Overall dimensionsL*w*H(mm) |
|---|---|---|---|---|---|---|---|---|
| PC400*400 | 1500 | 145*450 | 100 | 0-30 | 5-8 | 7.5 | 0.9 | 844*942*878 |
| PC600*400 | 1000 | 295*450 | 100 | 0-35 | 10-12 | 18.5 | 1.03 | 1054*972*1117 |
| PC600*600 | 1000 | 295*570 | 100 | 0-35 | 12-18 | 45 | 2.14 | 1315*840*1501 |
| PC800*600 | 1000 | 350*570 | 100 | 0-45 | 20-25 | 55 | 2.45 | 1515*2586*1040 |
| PC800*1000 | 1000 | 350*850 | 100 | 0-45 | 35-45 | 55 | 3.05 | 1515*2831*1040 |
