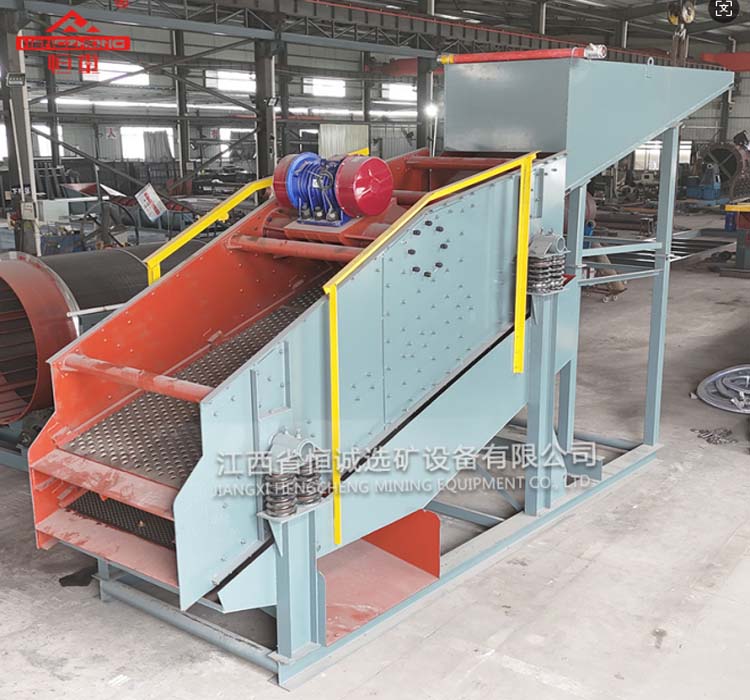

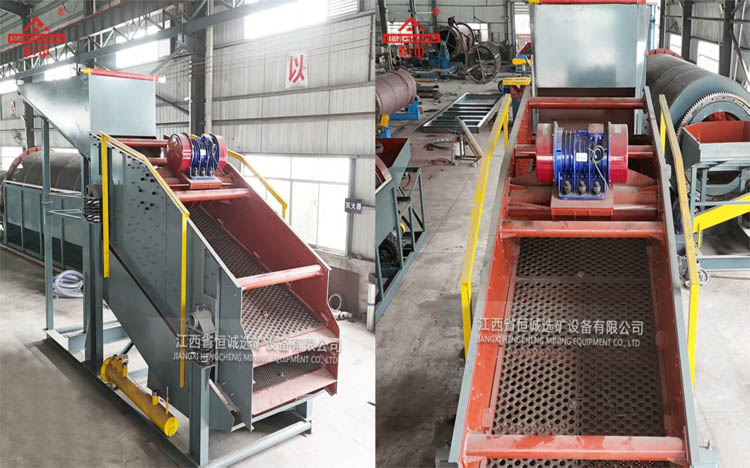

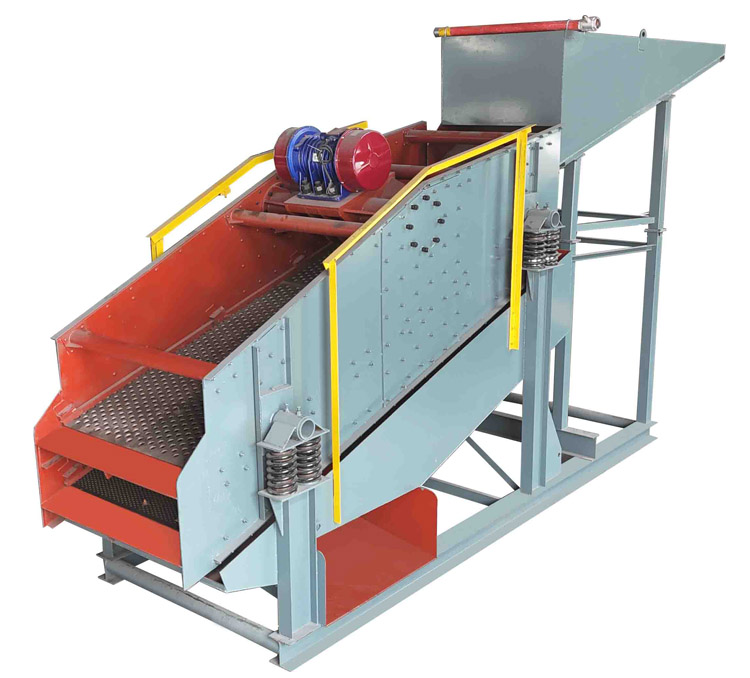

Washing Plant Vibrating Screen Machine

Description

Vibratory mineral washing and screening machine is an efficient and versatile mining equipment, primarily used for cleaning, grading, and screening minerals. It is widely applied in metal ores, non-metal ores, sand and gravel, coal, and construction waste processing. Its core function is to combine vibration and water flow to achieve deep cleaning and precise screening of minerals, effectively enhancing mineral quality and subsequent processing efficiency.

Working Principle

Vibration screen gold integrated machine, driven by a vibration motor to produce periodic vibration in the screen box, combined with gravity, can quickly separate large particles and fine particles from gold ore, with a processing capacity of 50-500 tons/hour. Addressing the low production of the roller screen, difficulty in movement, and the need for many maintenance parts. The equipment supports multi-level screening design, achieving fine grading by adjusting the screen mesh size and vibration frequency to meet the needs of different mining processes. Modular assembly is easy to operate and has low maintenance costs; it is convenient to move and highly adaptable. The equipment integrates screening and gold selection functions (such as with vibrating sluice and gold mat), and the gold extraction rate can reach 70%-80%.

Main Features

 1。  Efficient cleaning and screening

- Adjustable vibration frequency (800-1500 times per minute) to suit different hardness of ores.；

2. High adaptability

   - Capable of handling complex ores with high clay content and high viscosity, such as gold mine tailings and river sand.

   - Screen module design supports quick replacement

3. energy conservation and environmental protection

   - Using variable frequency motors reduces energy consumption by 30%  ；

   - The recirculating water system reduces water waste, and slurry can be centrally recovered and treated.

4. Durable and low maintenance

   - The screen box is lined with rubber or polyurethane, doubling its wear resistance and lifespan.；

   - Closed structure design prevents dust overflow and meets environmental standards.。
